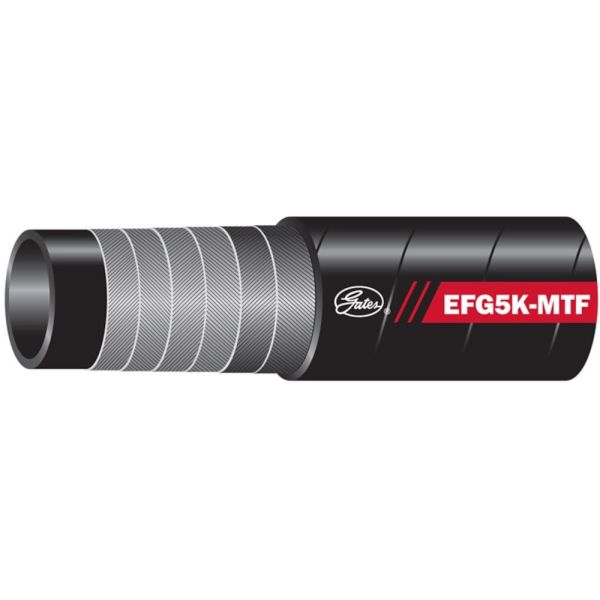

10EFG5K-MTF Spiral Wire Hose - 350 Bar - MegaTuff Cover
$3.51
Recommended For: Extremely high-pressure high-impulse applications. Exceeds all requirements of ISO 18752 Grade D and SAE 100R13 and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12). EN 856 R13, and ISO 3862 Type R113 (-12, -16, -20, -24, -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
Availability:
In stock
SKU
10EFG5K-MTFXCTN
Product # 46511410
Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K-MTF is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13 specifications and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12), EN 856 R13, and ISO 3862 Type R13 (-12, -16, -20, -24, -32). Recommended Couplings: GlobalSpiral Couplings (-6 through -20), GlobalSpiral MAX Pressure Couplings (-24 and -32), Stainless Steel S Couplings.
EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
| UPC | 072053876086 |
|---|---|
| UOM | IN |
| Continuous Operating Temperature Range | -40°F to +250°F |
| Dash 1 Size | -10 (5/8") |
| Length | Custom |
| Brand | Gates |
| Minimum Bend Radius (in) | 4 |
| Min Burst Pressure (psi) | 20000 |
| Series | EFG5K |
| Wire | 4 |
| Returnable | No |
