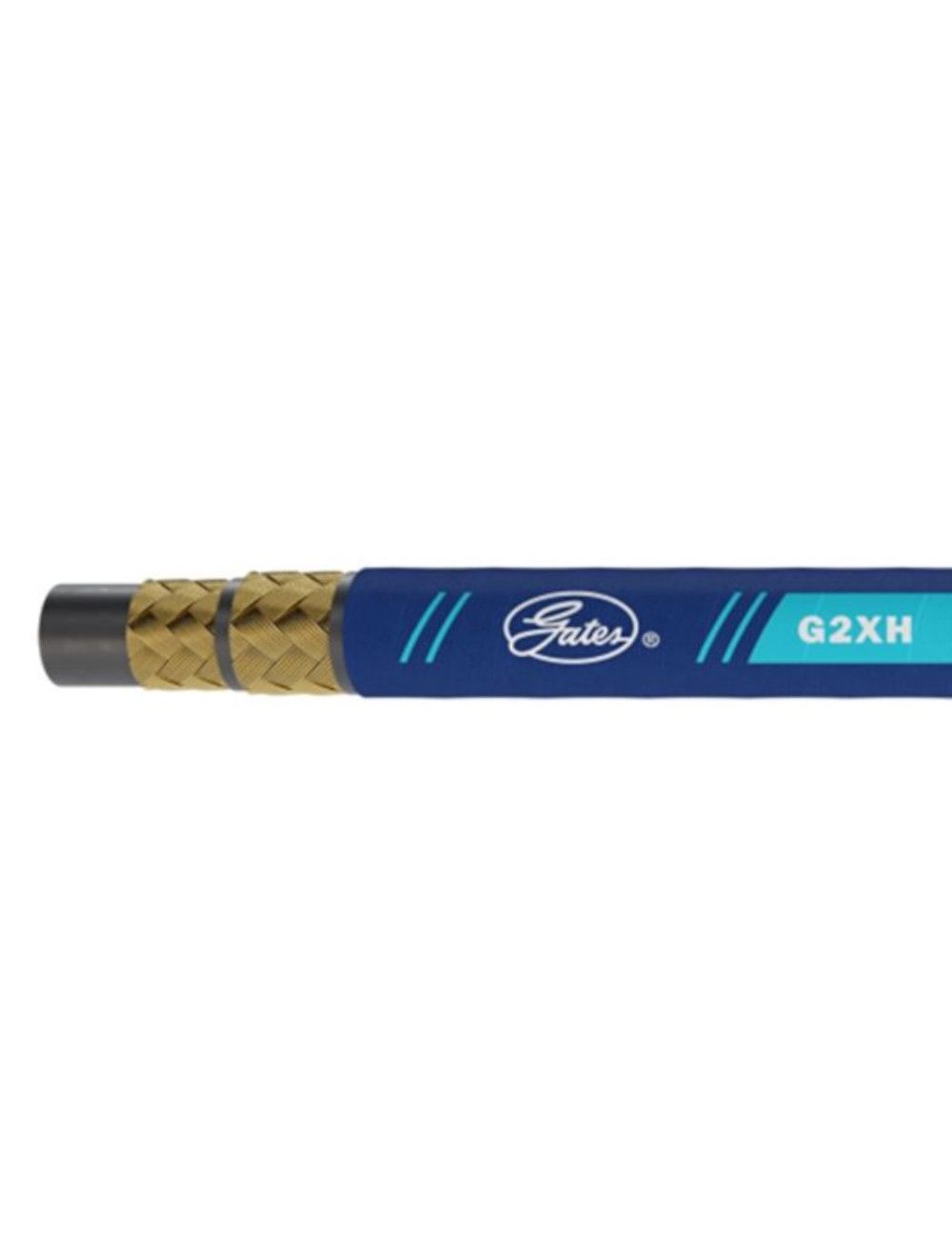

10G2XH Wire Braid Hose

$1.66
Recommended For: Extremely high-temperature high pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-based or phosphate ester fluids is required. Meets SAE J1942 requirements.
Availability: In stock
SKU
10G2XHXREEL
Product # 46572544

Recommended for extremely high-temperature, high-pressure hydraulic oil line applications such as engine compartments, foundries, etc. where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral Plus Couplings, MegaCrimp Couplings, Stainless Steel B Couplings (24 and 32).

  • G2XH hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.

  • Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard.

  • Certified to meet rail standard EN 45545-2, a globally accepted fire protection standard for railway vehicles.
  • More Information
    UPC 072053800685
    UOM IN
    Continuous Operating Temperature Range -40 F to +300 F
    Dash 1 Size -10 (5/8")
    Hose O.D. 0.99"
    Length Custom
    Brand Gates
    Max Working Pressure 3,625 psi
    Minimum Bend Radius (in) 8
    Min Burst Pressure (psi) 14500
    Series G2XH
    Wire 2
    Returnable No
