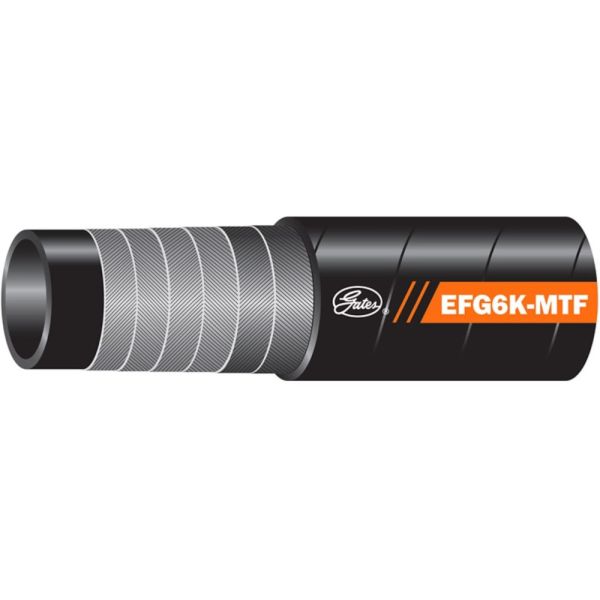

12EFG6K-MTF Spiral Wire Hose - 420 Bar - MegaTuff Cover

$6.69
Recommended For: Extremely high pressure, high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4 SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24) Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths.
Availability: In stock
SKU
12EFG6K-MTFXCTN
Product # 46511606

Recommended for extremely high pressure and high impulse applications such as hydrostatic transmissions. EFG6K-MTF is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). 12EFG6K-MTF meets ISO 18752 Grade D. Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20).

  • EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
  • Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32).
  • More Information
    UPC 072053978858
    UOM IN
    Continuous Operating Temperature Range -40°F to +250°F
    Dash 1 Size -12 (3/4")
    Length Custom
    Brand Gates
    Minimum Bend Radius (in) 4.7
    Min Burst Pressure (psi) 24000
    Series EFG6K
    Wire 4
    Returnable No
