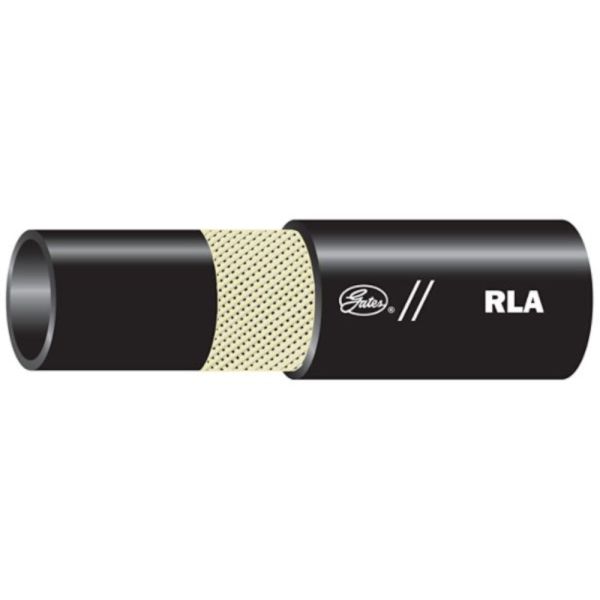

16RLA-30R2 Return Line and Low Pressure Hose
$1.03
Recommended For: Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline, or air. Meets SAE 30R2 performance requirements of both Tyle 1 and Type 2 for fuel and B20 constant contact for up to 125F biodiesel fuel transfer applications.
Availability:
In stock
SKU
16RLA-30R2XREEL
Product # 32840180
Recommended for low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +51°C(+125°F) biodiesel fuel transfer applications.
Meets Flame Resistance Acceptance Designation MSHA 2G.
Cover: Oil and abrasion resistant.
Validated with MegaCrimp.
Recommended for low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +51°C(+125°F) biodiesel fuel transfer applications.
Meets Flame Resistance Acceptance Designation MSHA 2G.
| UPC | 072053130171 |
|---|---|
| UOM | IN |
| Continuous Operating Temperature Range | -40 F to +212 F |
| Dash 1 Size | -16 (1") |
| Hose O.D. | 1.34" |
| Length | Custom |
| Brand | Gates |
| Max Working Pressure | 160 psi |
| Minimum Bend Radius (in) | 8 |
| Min Burst Pressure (psi) | 640 |
| Series | RLA-30R2 |
| Vacuum | 10 |
| Returnable | No |
