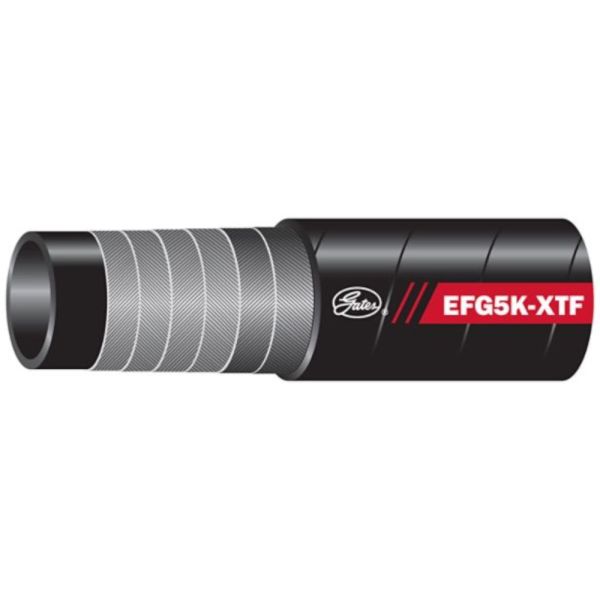

6EFG5K-XTF Spiral Wire Hose - XtraTuff Cover

$1.95
Recommended For: Extremely high-pressure high-impulse applications. Exceeds all requirements of ISO 18752 Grade D and SAE 100R13 and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12). EN 856 R13, and ISO 3862 Type R113 (-12, -16, -20, -24, -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
Availability: In stock
SKU
6EFG5K-XTFXREEL
Product # 46510370

Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K-XTF is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13 specifications and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12), EN 856 R13, and ISO 3862 Type R13 (-12, -16, -20, -24, -32). Recommended Couplings: GlobalSpiral Couplings (-6 through -20), GlobalSpiral MAX Pressure Couplings (-24 and -32), Stainless Steel S Couplings.

  • EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
  • Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
  • More Information
    UPC 770075706588
    UOM IN
    Continuous Operating Temperature Range -40 F to +250 F
    Dash 1 Size -6 (3/8")
    Hose O.D. 0.8"
    Length Custom
    Brand Gates
    Max Working Pressure 5,000 psi
    Minimum Bend Radius (in) 2.5
    Min Burst Pressure (psi) 20000
    Series EFG5K-XTF
    Wire 4
    Returnable No
