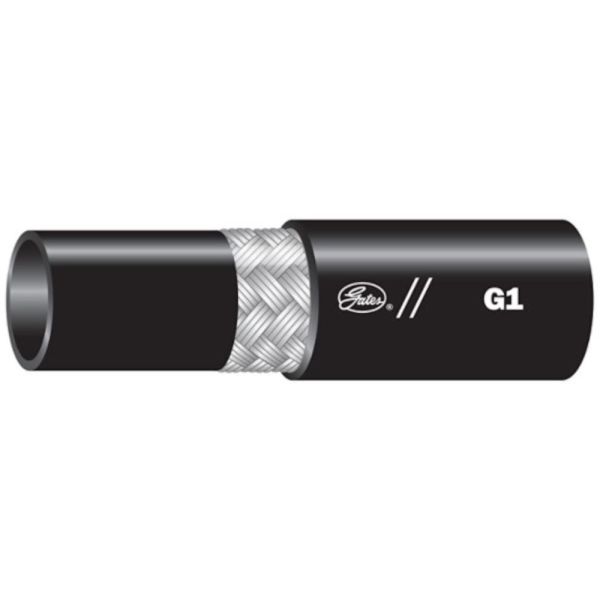

6G1 Wire Braid Hose

$0.65
Recommended For: Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN.
Availability: In stock
SKU
6G1XREEL
Product # 46570121

Recommended for medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1 Type S and ISO 1436 1SN R1, as well as the performance requirements of EN 853 1SN. Recommended Couplings: PCK Couplings (-4 to -16), Global Braid Couplings -GB (-4 and -6 to -16), Field Attachable Type T Couplings, GlobalSpiral Couplings (-6 through -20) GlobalSpiral Plus Couplings (-24 and -32), MegaCrimp Couplings, Power Crimp Couplings (-3), Power Crimp Grease Couplings (-3), Stainless Steel B Couplings (-4, -6, -8, -10, -12, -20, -32).

  • G1 hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

  • Superior flex impulse performance: Tested to 450,000 impulse cycles, 3 times the industry standard.
  • More Information
    UPC 072053210989
    UOM IN
    Continuous Operating Temperature Range -40 F to +212 F
    Dash 1 Size -6 (3/8")
    Hose O.D. 0.68"
    Length Custom
    Brand Gates
    Max Working Pressure 2,600 psi
    Minimum Bend Radius (in) 5
    Min Burst Pressure (psi) 10400
    Series G1
    Wire 1
    Returnable No
