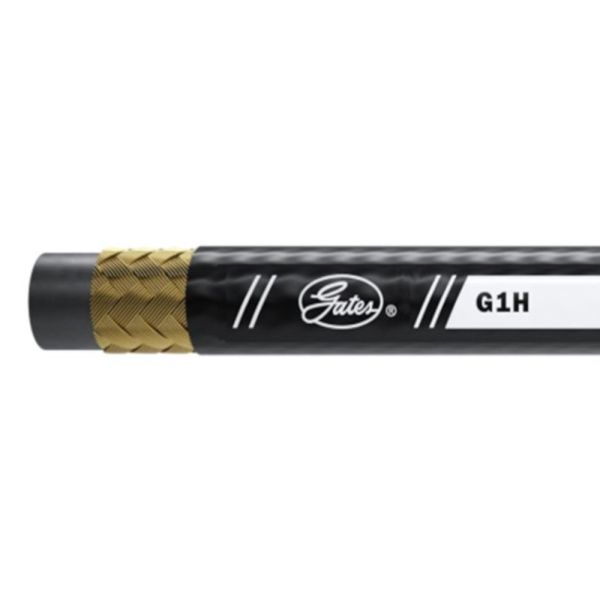

6G1H Wire Braid Hose - High Temp

$0.71
Recommended For: High-temperature medium pressure hydraulic oil lines. Meets or exceeds requirements of SAE 100R1 Type AT.
Availability: In stock
SKU
6G1HXREEL
Product # 46572176

Recommended for high-temperature, medium-pressure hydraulic oil line applications such as engine compartments, foundries, etc. Recommended Couplings: PCK Couplings (-4 to -16), Global Braid Couplings -GB (-4, 10 and -16), MegaCrimp Couplings (-4 to -20), GlobalSpiral Plus Couplings (-24 and -32).

  • Superior flex impulse performance: Tested to 450,000 impulse cycles, 3 times the industry standard.

  • Meets or exceeds requirements of SAE 100R1 Type AT.

  • 50% of SAE 100R1 bend radius at rated working pressure.

  • Certified to meet rail standard EN 45545-2, a globally accepted fire protection standard for railway vehicles.
  • More Information
    UPC 770075153290
    UOM IN
    Continuous Operating Temperature Range -40 F to +275 F
    Dash 1 Size -6 (3/8")
    Hose O.D. 0.69"
    Length Custom
    Brand Gates
    Max Working Pressure 2,250 psi
    Minimum Bend Radius (in) 5
    Min Burst Pressure (psi) 9000
    Series G1H
    Wire 1
    Returnable No
