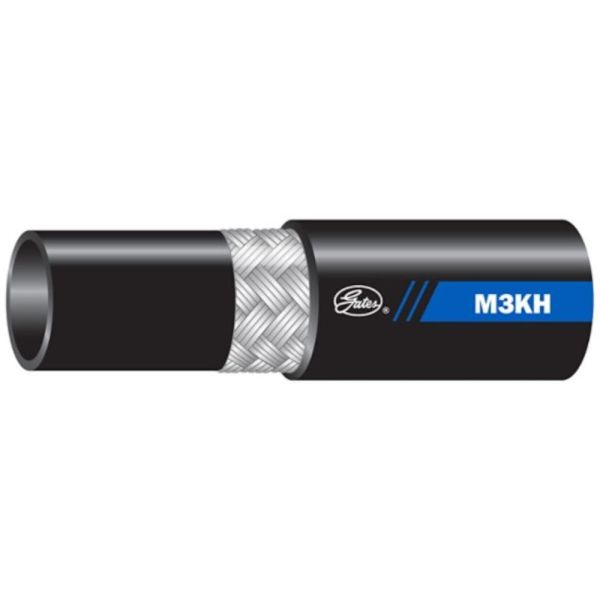

6M3KH Wire Braid Hose - High Temp

$0.83
Recommended For: Elevated Temperature high pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 ISC. M3KH hoser has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.
Availability: In stock
SKU
6M3KHXREEL
Product # 46572696

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. Recommended Couplings: GlobalSpiral Couplings (-6 through -16), MegaCrimp Couplings, Power Crimp Couplings (-3), Stainless Steel B Couplings.

  • M3KH hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

  • Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard.

  • Meets Flame Resistance Acceptance Designation MSHA 2G.
  • More Information
    UPC 072053882285
    UOM IN
    Continuous Operating Temperature Range -40 F to +250 F
    Dash 1 Size -6 (3/8")
    Hose O.D. 0.65"
    Length Custom
    Brand Gates
    Max Working Pressure 3,250 psi
    Minimum Bend Radius (in) 2.5
    Min Burst Pressure (psi) 13000
    Series M3KH
    Wire 1
    Returnable No
