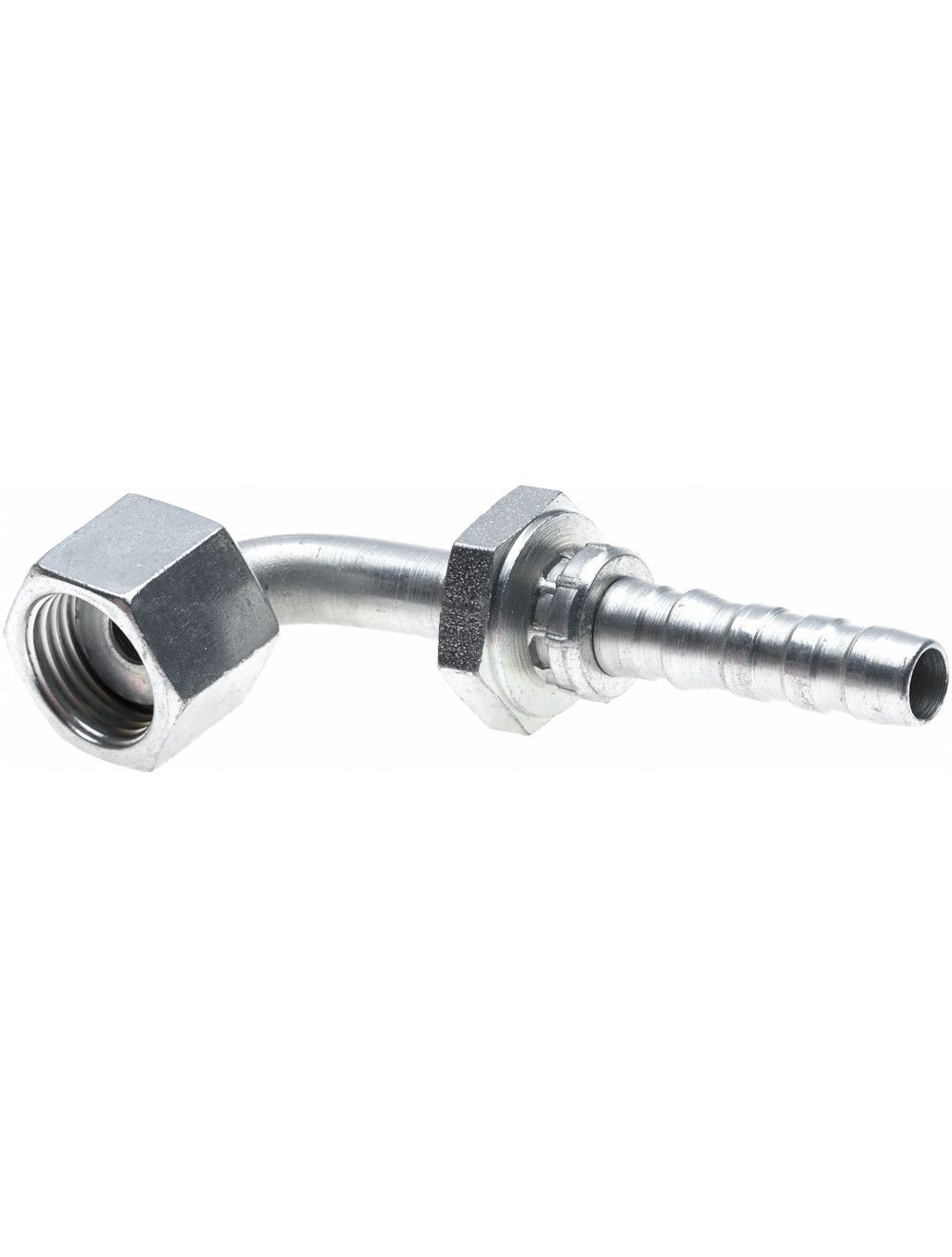

8GS-8FFORX90M GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube
Engineered for extreme high-pressure, high-impulse spiral wire hose, Gates GlobalSpiral couplings feature a "bite-the-wire" crimp for improved coupling retention. They can be used with Gates four- and six-spiral wire hoses up to 8,000 psi.
Availability: In stock
Gates GlobalSpiral couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
Surpasses one million impulse cycles.
|Dash 1 Size||-8 (1/2")|
|Dash 1 Connection||GS: Globalspiral|
|Dash 2 Size||-8 (1/2")|
|Dash 2 Connection||FFOR: Female Flat-Face O-Ring|
