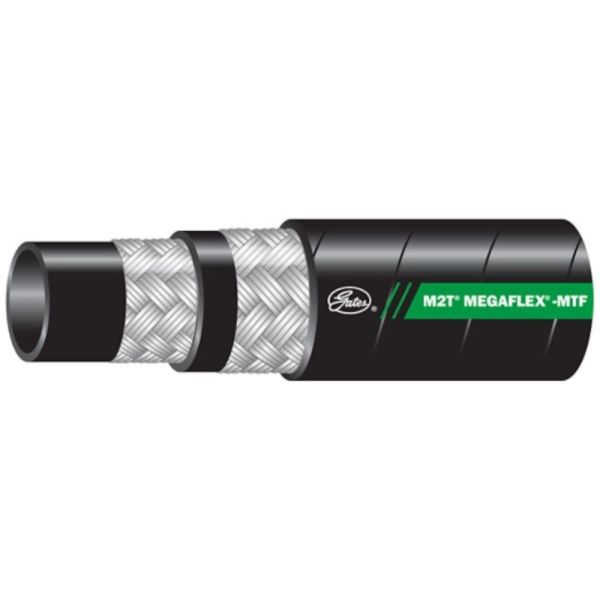

8M2T-MTF Wire Braid Hose- MegaTuff Cover

$1.36
Recommended For: High-pressure hydraulic oil lines. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T Hose has smaller exterior dimensions and significantly tighter bend radius.
Availability: In stock
SKU
8M2T-MTFXREEL
Product # 46570224

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. Recommended Couplings: GlobalSpiral Couplings (-6 through -20), GlobalSpiral Plus Couplings (-24 and -32), MegaCrimp (-4 through -20), and Stainless Steel B Couplings.

  • Superior flex impulse performance: Tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii.

  • Temperature Range:
  • Constant: -40°C to +100°C, -40°F to +212°F
  • Intermittent: +121°C, +250°F
  • More Information
    UPC 072053352740
    UOM IN
    Continuous Operating Temperature Range -40 F to +212 F
    Dash 1 Size -8 (1/2")
    Hose O.D. 0.82"
    Length Custom
    Brand Gates
    Max Working Pressure 4,300 psi
    Minimum Bend Radius (in) 2.8
    Min Burst Pressure (psi) 17200
    Series M2T-MTF
    Wire 2
    Returnable No
