10MegaTech G5TB Oil-Air Return
$2.24
Recommended For: Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT DMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications.
Availability:
In stock
SKU
10MEGATECH 1000XREEL
Product # 46572186
Recommended for pressurized hot oil return lines and rotary oil lines. Meets the requirements of SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils. Recommended Couplings: GL Couplings (-24 and -32), GlobalSpiral Plus Couplings (-24 and -32), MegaCrimp Couplings (-4 through -20).

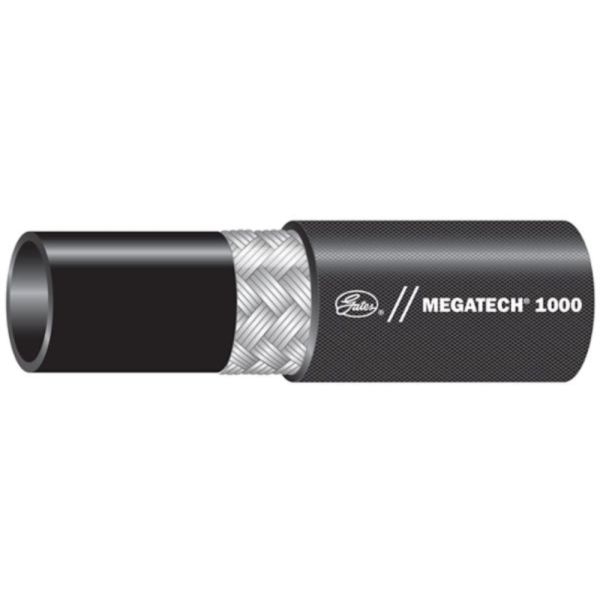

MegaTech is True-Bore ID Gates Technical Spec 300F tube stock with Textile braid cover.
MegaTech G5TB has a Blue Textile braid cover.
Temperature Range:
Petroleum-base fluids: -40°C to +149°C
-40°F to +300°F
Phosphate esters fluids: -40°C to +100°C
-40°F to +212°F
Recommended for pressurized hot oil return lines and rotary oil lines. Meets the requirements of SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils. Recommended Couplings: GL Couplings (-24 and -32), GlobalSpiral Plus Couplings (-24 and -32), MegaCrimp Couplings (-4 through -20).
Temperature Range:
Petroleum-base fluids:
Phosphate esters fluids:
| UPC | 770075250869 |
|---|---|
| UOM | IN |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Dash 1 Size | -10 (5/8") |
| Length | Custom |
| Brand | Gates |
| Minimum Bend Radius (in) | 4 |
| Min Burst Pressure (psi) | 8000 |
| Series | MegaTech 1000 |
| Wire | 1 |
| Returnable | No |
