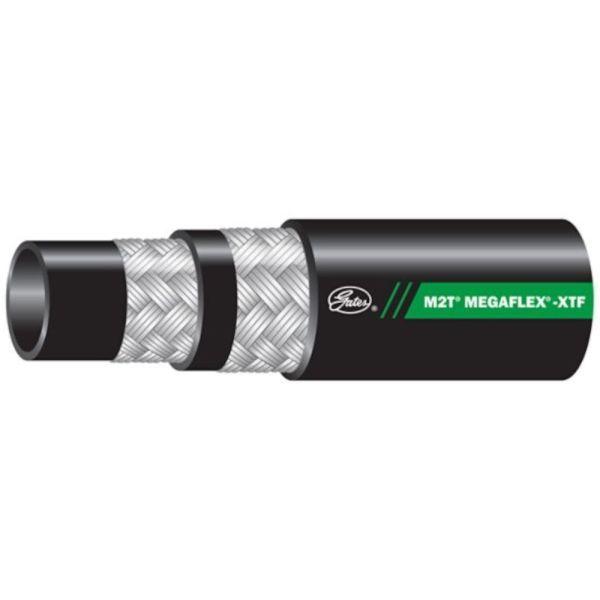

12M2T-XTF Wire Braid Hose - XtraTuff

$2.19
Recommended For: High-pressure hydraulic oil lines. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T Hose has smaller exterior dimensions and significantly tighter bend radius.
Availability: In stock
SKU
12M2T-XTFXREEL
Product # 46574310

Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in tight areas. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. Recommended Couplings: GlobalSpiral Couplings (-6 through -16), MegaCrimp (-4 through -20), and Stainless Steel B Couplings.

  • M2T hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

  • Superior flex impulse performance: Tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii.

  • Meets Flame Resistance Acceptance Designation MSHA 2G.
  • More Information
    UPC 770075296287
    UOM IN
    Continuous Operating Temperature Range -40 F to +212 F
    Dash 1 Size -12 (3/4")
    Hose O.D. 1.11"
    Length Custom
    Brand Gates
    Max Working Pressure 3,500 psi
    Minimum Bend Radius (in) 3.8
    Min Burst Pressure (psi) 14000
    Series M2T-XTF
    Wire 2
    Returnable No
