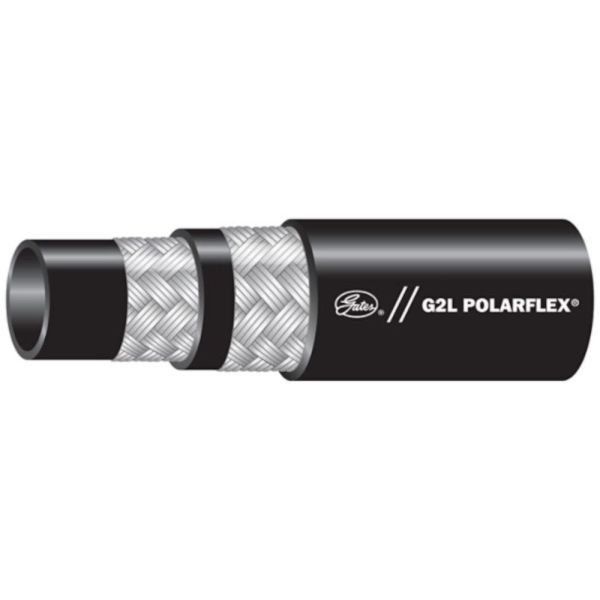

16G2L Wire Braid Hose - PolarFlex

$2.77
Recommended For: Low-temperature high pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN/ Qualifies to Mil-DTK-13531 Type II Class B.
Availability: In stock
SKU
16G2LXREEL
Product # 46572207

Recommended for extremely low temperature high-pressure hydraulic oil line applications. Meets or exceeds the requirements of SAE 100R2, ISO1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. Meets Flame Resistance Acceptance Designation MSHA 2G. Recommended Couplings: Field Attachable Type T Couplings (-4 through -24), GlobalSpiral Couplings, GlobalSpiral Plus Couplings, MegaCrimp Couplings.

  • G2L hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

  • Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard.
  • More Information
    UPC 072053530315
    UOM IN
    Continuous Operating Temperature Range -70 F to +212 F
    Dash 1 Size -16 (1")
    Hose O.D. 1.48"
    Length Custom
    Brand Gates
    Max Working Pressure 2,400 psi
    Minimum Bend Radius (in) 12
    Min Burst Pressure (psi) 9600
    Series G2L
    Wire 2
    Returnable No
