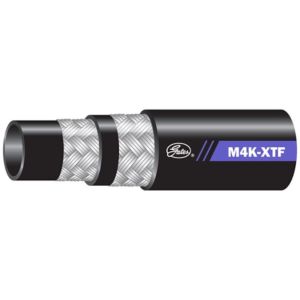

16M4K Wire Braid Hose
$2.87
Recommended For: High-pressure hydraulic applications. Exceeds ISO 18752 Grade B, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.
Availability:
In stock
SKU
16M4KXREEL
Product # 46574051
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of ISO 18752 Grade B, SAE 100R19, EN 857 2SC and ISO11237 R19. Recommended Couplings: GlobalSpiral Couplings, MegaCrimp Couplings (-4 to -12), GB Couplings (-4 to -12) PCK Couplings(-4 to -8), Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).
M4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard.
Meets Flame Resistance Acceptance Designation MSHA 2G.
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of ISO 18752 Grade B, SAE 100R19, EN 857 2SC and ISO11237 R19. Recommended Couplings: GlobalSpiral Couplings, MegaCrimp Couplings (-4 to -12), GB Couplings (-4 to -12) PCK Couplings(-4 to -8), Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).
Meets Flame Resistance Acceptance Designation MSHA 2G.
| UPC | 770075341321 |
|---|---|
| UOM | IN |
| Continuous Operating Temperature Range | -40 F to +212 F |
| Dash 1 Size | -16 (1") |
| Hose O.D. | 1.52" |
| Length | Custom |
| Brand | Gates |
| Max Working Pressure | 4,000 psi |
| Minimum Bend Radius (in) | 4.5 |
| Min Burst Pressure (psi) | 16000 |
| Series | M4K |
| Wire | 2 |
| Returnable | No |
