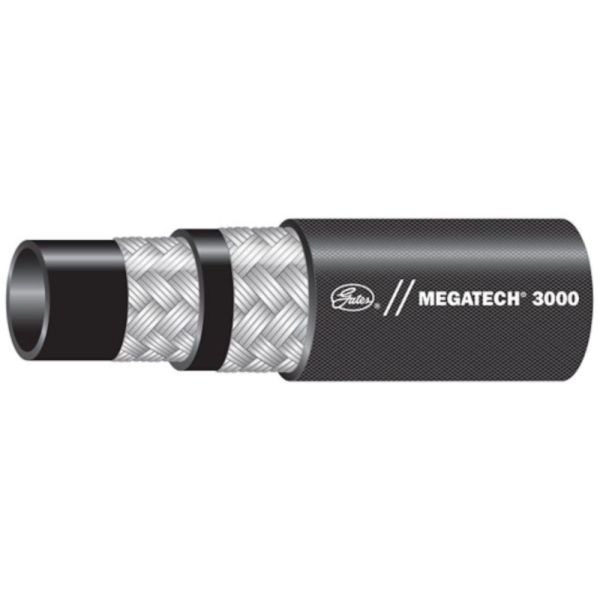

4MEGATECH 3000 High-Temp Oil-Air Return
$1.02
Recommended For: Pressurized hot oil return lines and rotary oil lines.
Availability:
In stock
SKU
4MEGATECH 3000XREEL
Product # 46572373
Recommended for pressurized hot oil return lines and rotary oil lines. Meets the requirements of SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils.
MegaTech is True-Bore ID Gates Technical Spec 300F tube stock with Textile braid cover.
MegaTech 3000 is 3000 PSI constant pressure for all ID's and has a Black Textile braid cover.
Temperature Range:
Constant: -40°F to +300°F
Intermittent:-40°C to +100°C, -40°F to +212°F
Recommended for pressurized hot oil return lines and rotary oil lines. Meets the requirements of SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils.
MegaTech is True-Bore ID Gates Technical Spec 300F tube stock with Textile braid cover.
MegaTech 3000 is 3000 PSI constant pressure for all ID's and has a Black Textile braid cover.
Temperature Range:
| UPC | 770075156208 |
|---|---|
| UOM | IN |
| Continuous Operating Temperature Range | -40 F to +300 F |
| Dash 1 Size | -4 (1/4") |
| Hose O.D. | 0.59" |
| Length | Custom |
| Brand | Gates |
| Max Working Pressure | 3,000 psi |
| Minimum Bend Radius (in) | 2 |
| Min Burst Pressure (psi) | 12000 |
| Series | MEGATECH 3000 |
| Vacuum | 30 |
| Wire | 2 |
| Returnable | No |
